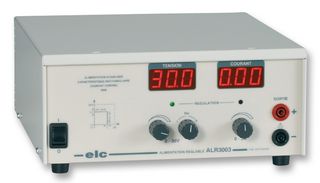

The ALR3003 is a 3A/230V 90W adjustable Power Supply with polycarbonate screen-printed front panel, metal case with cord housing, epoxy finish and digital display. This power supply features coarse and fine voltage adjustment, automatic constant voltage or current operation, short-circuit protection by current regulation, over-temperature protection by temperature-controlled fan, relay and thermal circuit-breaker, transformer primary and secondary over-current protection by fuse and controlled fan cooling.
- 14mm LED display
- 3 Digits display
- IP21 Protection rating
- 180VA Maximum power consumption
- Cord with 2-poles irremovable mains input
