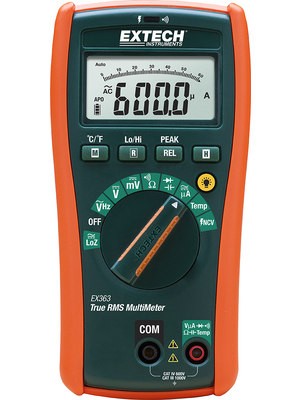

The EX363 from Extech Instruments is an 11 function true RMS multimeter. The EX363 is a compact HVAC true RMS multimeter with a built-in non contact voltage detector. It features high accurate true RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, 0.5% basic accuracy, a 1000V AC/DC volt range, resistance up to 40Mohm, continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero and offset adjustment. Additionally, the EX363 excels in HVAC flame rod measurements with a μA function, as well as type K temperature measurements from -40 to 742°F (-40 to 394°C) and frequency and capacitance measurements.
- Measures DC/AC voltage range from 0.1mV to 1000V
- Measures resistance range from 0.1ohm to 40Mohm
- Measures capacitance range from 1nF to 10mF
- Measures frequency range from 0.01Hz to 100KHz
- Measures DC/AC μA current of 600μA and temperature (type K) range of -40 to 742°F (-40 to 394°C)
- Includes diode test, continuity test
- Fast 60 segment analogue bargraph for viewing trends
- Built-in non-contact AC voltage detector (NCV) with hi/low ranges and LED indicator
- 6000 count white LED backlit display
- Dimension is 6.5" x 3.2" x 1.7" (164mm x 82mm x 44mm), weight is 5.9oz (450g)
- Auto power-off function
- Power: 1x PP3 battery (included)
