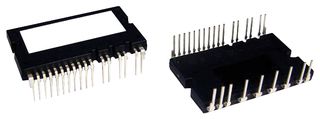

The FNB41060 is a 600V Motion SPM? 45 Module provides a fully-featured, high-performance inverter output stage for AC induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including undervoltage lockouts, over-current shutdown, thermal monitoring and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's robust short-circuit-rated IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. This product is general usage and suitable for many different applications.
Low thermal resistance using ceramic substrate
Low-loss, short-circuit rated IGBTs
Built-in bootstrap diodes and dedicated vs. pins simplify PCB layout
Built-in NTC thermistor for temperature monitoring
Three separate open-emitter pins from low side IGBTs for three leg current sensing
