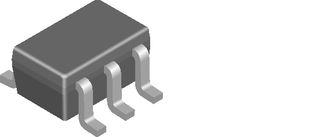

The NC7SB3157P6X is a high performance 1-pole/double-throw (SPDT) Analog Switch fabricated with advanced sub-micron CMOS technology to achieve high-speed enable and disable times and low on resistance. The break-before make select circuitry prevents disruption of signals on the B port due to both switches temporarily being enabled during select pin switching. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The control input tolerates voltages up to 5.5V, independent of the VCC operating range.
- Space saving SC70 6-lead surface mount package
- Ultra small MicroPak? Pb-free leadless package
- Rail-to-rail signal handling
- Power down high impedance control input
- Overvoltage tolerance of control input to 7.0V
- Break before make enable circuitry
信号处理, 便携式器材, 通信与网络, 消费电子产品, 计算机和计算机周边, 无线
