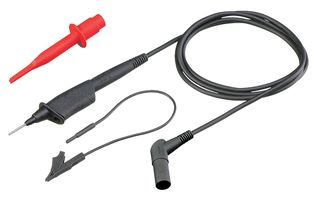

This Voltage Probe, 10:1, with safety-designed shrouded 4mm testpin is designed for use with 120 Series ScopeMeter. The shrouded 4mm banana testpin makes this probe also compatible with standard safety-designed crocodile clips.
Attenuation 10x
Bandwidth DC to 40 MHz (-3 dB)
Max Input Voltage 600 V CAT III / 1000 V CAT II as per IEC61010-031:2008
V*Hz product: 500*10^6 V*Hz
Input Resistance / Capacitance, 5 MR // 15.5 pF
Compensation Fixed for ScopeMeter 120 Series (14 pF)
Probe Tip: safety-shrouded 4 mm banana pin with test tip
