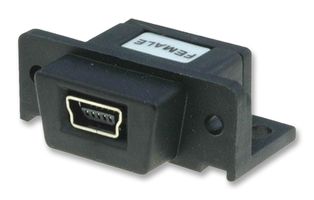

The DB9-USB-D5-F is a full-speed USB to UART Module that operates at 5V signal level. It can be used to replace a female DB9 connector that is wired in a PC compatible RS232 manner. It provides a simple and fast method of migrating existing DB9 based connector UART interfaces to USB 2.0. It is ideal for legacy applications which feature UART DB9 based connectors. It can be used to interface to an application systems logic level.
1-channel
Works with USB 1.1 and 2.0 host and hub ports
Chip set and device drivers for maximum compatibility
Microsoft Windows? WHQL-certified, Mac OS X, Linux and Windows CE device drivers
Installs as a standard Windows COM port
128-byte transmit buffer, 256-byte receive buffer
TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND UART data signals
Powered by USB port (no external power adapter required)
