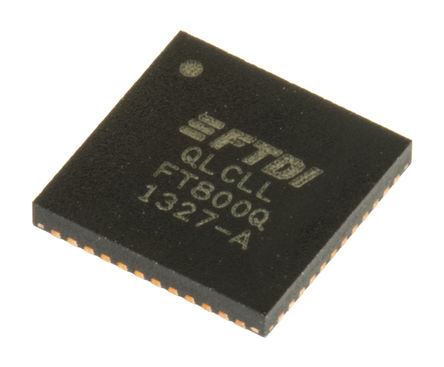

The FT800Q-R is a Display, Audio and Touch Controller, provides a powerful feature set to create dynamic HMI interfaces. The device supports line by line graphics rendering to 1/16 of a pixel on displays with resolution up to 512 x 512 with 262K colours. The chip includes a touch controller for sensing touch feedback from a TFT display with a resistive touch panel as well as a sound synthesizer and audio playback with a PWM output to drive a speaker.
- Single Chip for Display, Audio and Touch Control
- Up to 512 x 512 Pixel Resolution
- 262K Colours (6 Red, 6 Green, 6 Blue)
- Anti-aliasing
- 2-bit Colour Dither
- Programmable HSYNC/VSYNC Timing
- Backlight Control
- Resistive Touch Sense
- Objective Oriented Programming Approach
- Embedded Widgets to Assist with Creating Complex Images
- Mono Audio Output
- 64 In-built Polyphonic Tones
- Decode for mono 8-bit Linear PCM, 4-bit ADPCM and μ-Law coding format at frequencies from 8 to 48kHz
- SPI/I2C Interface to Host MCU
- 1.8 to 3.3V IO Levels to Host MCU
- 3V3 Levels on RGB Pins
