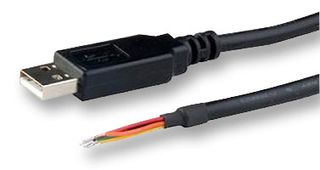

The TTL-232R-5V-WE from FTDI is an USB to UART cable with +5V TTL level UART signals. It incorporates FTDI's FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cable provides fast, simple way to connect devices with TTL level serial interface to USB. It contains small internal electronic circuit board utilising FT232R which is encapsulated into USB connector at end of the cable. The cable has unterminated bare and tinned wires at other and. The USB side of the cable is USB powered and USB 2.0 full speed compatible.
Cable length of 1.8m (6feet)
UHCI/OHCI/EHCI host controller compatible
Diameter of 5mm
24AWG, 2 core and spiral cable
Data transfer rates from 300baud to 3Mbaud at TTL levels
Connect directly to a microcontroller UART or I/O pins
Low USB bandwidth consumption
FCC and CE compliant
Support for FT232R FTDIChip-ID feature for improved security
