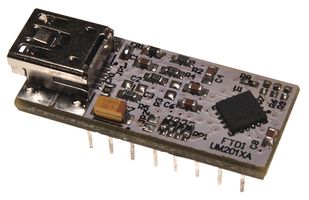

The UMFT201XA-01 is an USB to I2C DIP development module with 0.3inch row pitch. It utilises a FT201XQ which is a USB to I2C interface with a battery charger detection feature, which can allow batteries to be charged with a higher current from a dedicated charger port (without the FT201X being enumerated). In addition, asynchronous and synchronous bit bang interface modes are available. The internally generated clock (6MHz, 12MHz and 24MHz) can be brought out on one of the CBUS pins to be used to drive a microprocessor or external logic. This module is designed to plug into a standard 0.3inch wide 16 pin DIP socket. The UMFT201XA-01 has two solder links fixed to the top side of the PCB. These solder link can be adjusted by removing the solder linking the two PADs to produce an open or by placing a solder bridge to produce a short.
- Small PCB assembly module designed to fit a standard 7.62mm (0.3inch) wide 16 pin DIP socket
- On board USB mini B socket allows module to be connected to PC or USB host
- Functionally configurable using solder links
- Default solder links setup enables module to function without peripheral wires or application board
- Entire USB protocol handled on the chip, no USB specific firmware programming required
- Fully integrated 2048B MTP memory for storing device descriptors and CBUS I/O configuration
- Integrated power on reset circuit
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full speed compatible
