UMFT4222EV -

制造商：

FTDI FTDI

制造商产品编号：

UMFT4222EV

仓库库存编号：

2474765

技术数据表：

(EN)

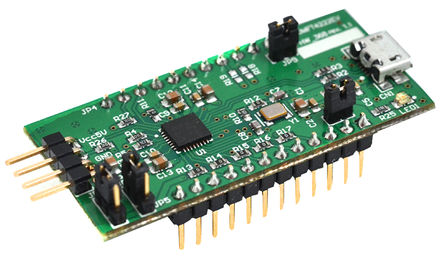

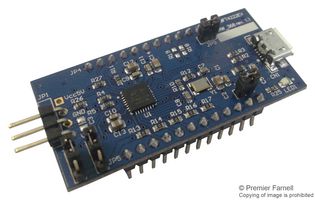

The UMFT4222EV is an USB2.0 to QuadSPI/I2C Bridge Development Module, uses FTDI's FT4222H. FT4222H requires an external crystal (12MHz) for the internal PLL to operate. It supports multi-voltage IO, 3.3, 2.5 or 1.8V. It also provides 128 bytes one-time-programmable (OTP) memory space for storing vendor specific information. The FT4222H contains SPI/I2C configurable interfaces. The SPI interface can be configured as master mode with single, dual or quad bits data width transfer or slave mode with single bit data width transfer. The I2C interface can be configured as master or slave mode. The UMFT4222EV is supplied as a small PCB which is designed to plug into a standard 0.8-inch wide 24-pin DIP socket. OTP memory inside for USB vendor ID (VID), product ID (PID), device serial number, product description string and various other vendor specific data.

• Single high-speed USB 2.0 chip (FT4222H) to flexible and configurable SPI/I2C interfaces
• SPI interface support for single/dual/quad SPI master mode with configurable target operating speed
• Up to 28Mbps data transfer rate in SPI mode with quad data mode
• Support up to 4 slave selection control pins in SPI master mode
• Support single SPI slave mode with SCK operating frequency up to 20MHz
• I2C interface support 7-bit address and fully compatible to v2.1 and v3 specification
• Configurable GPIOs controlled by application software via USB bus
• Fully support USB2.0 suspend/resume and remote wakeup
• Support battery charger detection
• USB power configurations, bus-powered and self-powered

• On-board jumper for FT4222H configuration mode, USB power configuration and VCCIO source selection
• Integrated power-on-reset circuit
• True 3.3V CMOS drive output & TTL input (down to 1.8V with external 1.8V power input to VCCIO)
• Support wide supply voltage range
• USB 2.0 low operating and suspend current, 68mA (active-typical) and 375μA (suspend-typical)
• 4mA (minimum) and 16mA (maximum) configurable I/O pin output drive strength
• UHCI/OHCI/EHCI/XHCI host controller compatible
• Royalty-free direct (D2XX) drivers eliminate requirement for USB driver development in most cases
• On-board USB micro-B receptacle allows module to be connected to a PC
