USB-COM232-PLUS-2 -

开发模块, USB-RS232, 2通信口

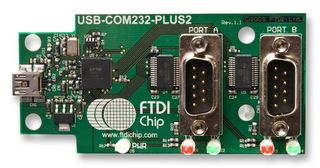

FTDI USB-COM232-PLUS-2
声明:图片仅供参考,请以实物为准!
制造商:
FTDI FTDI
制造商产品编号:
USB-COM232-PLUS-2
仓库库存编号:
1817171
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

USB-COM232-PLUS-2产品概述

The USB-COM232-PLUS2 module is a USB to dual channel RS232 communications module. The module is based on the FTDI FT2232H (USB 2.0 Hi-Speed device) and includes level shifters to support full RS232 level signalling. Power/TXD/RXD LEDs to provide a visual indication of data traffic through the module. The module uses a standard USB miniB device connector for connection to an upstream host or hub port. RS232-level signals, including modem handshake signals, are available on an industry-standard DE-9P connector. The maximum RS232-level data rate is 1Mbps. The USB-COM232-PLUS2 module requires USB device drivers, which are used to make the USB-COM232-PLUS2 appear as two Virtual COM Port (VCP). This allows existing serial communications software such as HyperTerminal to exchange data through the USB-COM232-PLUS2 to a legacy RS232 peripheral device.
  • Adds two RS-232 serial ports by connecting to USB
  • Easy plug & play installation and RS-232 device connection
  • Provide USB2.0 Hi-Speed(480Mbps) interface and works with USB 1.1 & 2.0 Host and Hub ports
  • Industry Standard FTDI chip set & device drivers for maximum compatibility
  • Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
  • Installs as two standard Windows COM ports
  • Supports Windows Server 2008, 2003, Vista, XP 2000, Linux, Mac OS X
  • FIFO with 4K byte transmit buffer, 4K byte receive buffer
  • RS-232 data signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND. Serial port speed up to 1Mbps
  • Powered by USB port. No external power adapter required

通信与网络, 无线, 便携式器材, 医用, 安全, 音频, 成像, 视频和目视, 工业, 消费电子产品, 传感与仪器

USB-COM232-PLUS-2产品信息

  桥接类型  USB 到 串行口
  模块接口  RS232, USB
  支持器件  FT2232H
  电源电压最小值  4.25V
  电源电压最大值  5.25V
  产品范围  -
关键词

USB-COM232-PLUS-2关联产品

  • 制造商产品编号
  • 仓库库存编号
  • 制造商 / 说明 / 规格书
  • 操作
电话:400-900-3095
QQ:800152669

USB-COM232-PLUS-2产地与重量

原产地:
China

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85429000
重量(千克):
.05
