USB-COM422-PLUS-2 -

开发模块, USB-RS422, 2通信口

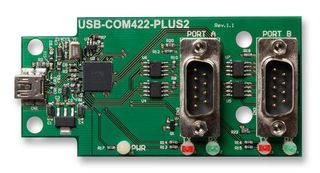

FTDI USB-COM422-PLUS-2
声明:图片仅供参考,请以实物为准!
制造商:
FTDI FTDI
制造商产品编号:
USB-COM422-PLUS-2
仓库库存编号:
1817174
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

USB-COM422-PLUS-2产品概述

The USB-COM422-PLUS2 module is a single USB interface to two independent RS422 ports, communication device. The integrated electronics of the USB-COM422-PLUS2 utilise the FTDI FT2232H (USB 2.0 Hi-Speed device) and includes RS422 level shifters plus Power/TXD/RXD LEDs to provide a visual indication of data traffic through the module. The module uses a standard USB-B device connector for connection to an upstream host or hub port. RS422-level signals, including modem handshake signals, are available on an industry-standard DE-9P connector. The maximum RS422-level data rate is 10Mbps. The USB-COM422-Plus2 module requires USB device drivers, which are used to make the USB-COM422-Plus2 appear as a Virtual COM Port (VCP). This allows existing serial communications software such as HyperTerminal to exchange data through the USB-COM422-Plus2 to a legacy RS422 peripheral device.
  • Adds dual RS-422 serial port by connecting to a USB 2.0 Hi-Speed interface.
  • Easy plug & play installation and RS-422 device connection
  • Works with USB 1.1 & 2.0 Host and Hub ports
  • Industry standard FTDI chip set & device drivers for maximum compatibility
  • Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
  • Installs as a standard Windows COM port
  • Supports Windows Server 2008, 2003, Vista, XP, 2000, Windows CE, Linux, Mac OS X
  • FIFO with 4K byte transmit buffer, 4K byte receive buffer
  • RS-422 data signals: TxD+,TxD-,RxD+,RxD-,RTS+,RTS-,CTS+,CTS-,GND. Serial port speed up to 10Mbps
  • Powered by USB port. No external power adapter required

通信与网络, 无线, 便携式器材, 医用, 安全, 音频, 工业, 消费电子产品, 传感与仪器, 成像, 视频和目视

USB-COM422-PLUS-2产品信息

  桥接类型  -
  模块接口  -
  支持器件  -
  电源电压最小值  -
  电源电压最大值  -
  产品范围  -
关键词

USB-COM422-PLUS-2关联产品

电话:400-900-3095
QQ:800152669

USB-COM422-PLUS-2产地与重量

原产地:
China

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85429000
重量(千克):
.05
