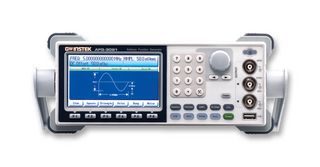

The AFG-3051 is a 50MHz Arbitrary Function Generator with built-in multiple standard waveforms to meet users' diversified needs. The AFG-3000 series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The AFG-3000 series also provides a high 16-bit resolution, 200MSa/s sample rate and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency. In addition, the AFG-3000 series has switchable 50R and Hi-Z Impedances, built-in on-screen help for operation conveniently.
- Wide frequency range from 1μHz to 80/50MHz
- High 200MSa/s sampling rate
- 16-bit Amplitude resolution
- Output from any section of 1M-point-long waveform
- 4.3" high resolution LCD display/on-screen help/Impedance switch
- Four ways to generate arbitrary waveform - Front panel operation
- CSV file uploading, direct waveform reconstruction (DWR), arbitrary
- Waveform editing PC software
- Supports USB, RS-232 and GPIB interface
- Modulation, sweep and burst functions
- Easy operation and flexible arbitrary waveform editing
- Impedance switch and on-screen help
- Standard communication interfaces
