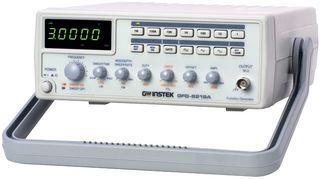

The GFG-8219A is a 3MHz Function Generator made to accommodate the applications in audio response testing, vibration testing, servo system evaluation and ultra sound application. The GFG-8200A product family offers a complete solution in generating signals. This model is embedded with standard functions such as TTL/CMOS/ramp output, external voltage controlled frequency (VCF). Further versatility of logarithmic and linear sweep is added into GFG-8255A/8219A/8217A, while GCV output feature and AM/FM modulation are available in GFG-8255A/8219A.
- Supports 0.3Hz to 3MHz frequency range
- Waveforms - Sine, triangle, square, ramp, TTL and CMOS output
- External voltage controlled frequency (VCF) function
- Duty cycle control with signal inversion capability
- Variable DC offset control
- Two-step (-20dB x 2) and variable attenuator
- Built-in 6 digit counter with INT/EXT function up to 150MHz
- INT/EXT AM/FM modulation
- LIN/LOG sweep mode
- GCV output for synchronization
