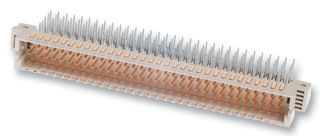

The 02-01-160-2101 is a 160-position 5-row male HAR-BUS? 64 VME64X Extension Connector System for data transfer rates up to 320Mbps. Angled orientation, 2.54mm pitch, with flange, copper alloy contacts and solder termination. The design of HAR-BUS? 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS? 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
PL 2 according to IEC 61076-4-113 250 mating cycles
Improved signal/ground ratio for reliable signal data transfer at rates up to 320MBps
Four preleading contacts to prevent glitches during insertion of new cards into backplane
Moulded in LCP for male and female connectors (UL94V-0)
Partially gold plated terminations with formed tips serve as contact area for rear transition boards
