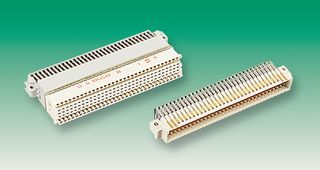

The 02 01 160 210200 is a 160-position 5-row Shrouded Header, right angled male connector with flange and retention clip for use with har-bus 64 series. Copper alloy contacts with gold over nickel plated for rows d and z. with gold over palladium nickel over nickel for rows a, b, c and solder termination with length 3mm. The design of HAR-BUS? 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS? 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
PL 2 according to IEC 61076-4-113 250 mating cycles
