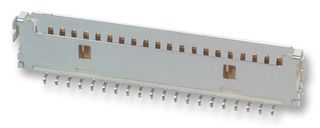

The DF19G-30P-1H(54) is a 30-position 1-row 1mm male Board-to-board Receptacle with gold plated phosphor bronze contacts, a beige polyamide insulator and tin-copper plated phosphor bronze grounding plate. The DF19 series connector has ground plating, horizontal SMT mounting style, right angle connector orientation, standard on-board mounting side and friction locking style. High performance connectors for LVDS high speed differential signals. Metal grounding plates connect with the common ground line.
- 1A Rated current
- 100VAC Rated voltage
- 30mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 300V Maximum withstanding voltage
- 30 Mating/unmating cycles
