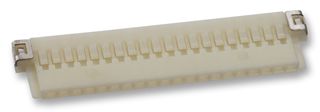

The DF19G-30S-1C(05) is a 30-position 1-row 1mm female Board-to-board Plug with gold plated phosphor bronze contacts and a beige polyamide insulator. The DF19 series connector has ground plating, crimping wire termination method, discrete wire type and friction locking style. High performance connectors for LVDS high speed differential signals. Metal grounding plates connect with the common ground line.
- 1A Rated current
- 100VAC Rated voltage
- 30mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 300V Maximum withstanding voltage
- 30 Mating/unmating cycles
