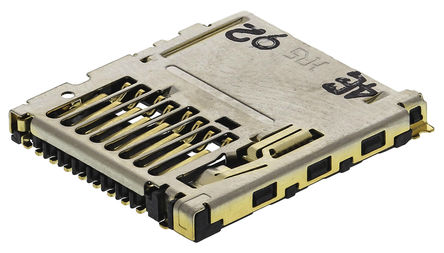

The DM3BT-DSF-PEJS is a 8-position female microSD Card Socket with gold plated copper alloy contacts and a black LCP insulator. The DM3 series connector has reverse on-board mounting side, SMT mounting style, metal shields and push-push eject mechanism. Unique card slot design (patent pending) protects the connector from damage when the card is attempted to be inserted in reverse, allowing it to re-inserted correctly. 4-connection points of the metal cover to the printed circuit board assures secure connection of the ground circuit and provides EMI protection. Despite its small size, high-strengths materials used in the connectors produced a strong and rigid structure. The card detection switch is normally open.
0.5A Rated current
125VAC Rated voltage
100mR Maximum contact resistance
1000MR Minimum insulation resistance
500VAC for one minute Maximum withstanding voltage
