LX60-12S -

输入输出连接器, LX系列, I/O, 插座, 12 触点, 焊接, 电路板安装

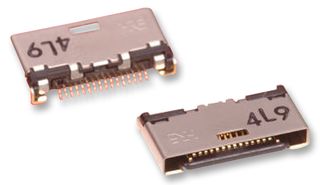

HIROSE(HRS) LX60-12S
声明:图片仅供参考,请以实物为准!
制造商产品编号:
LX60-12S
仓库库存编号:
1425710
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

LX60-12S产品概述

The LX60-12S is a 12-position 1-row female miniature waterproof Shielded Receptacle with gold plated copper alloy contacts and a black synthetic resin insulator. The LX series connector has gold flash plated shell, right angle connector orientation and standard on-board mounting side. LX Series is a super low profile interface connector with sequential mating design and friction lock, which has been developed for low profile mobile terminals. This connector features ESD problem prevention in 0.5mm terminal pitch and 2.0mm small and low profile design, which makes it suitable to small mobile devices. Use of metal shell guarantees that fully mated connectors will withstand 30N max force applied on the plug in any direction. Bellows contact with long mating stroke provides highly reliable mating as well as soft insertion feeling. Mating durability is up to 5,000 times long.
  • Low profile on the PCB
  • Strong construction
  • High contact reliability
  • Sequenced contact mating
  • Incorrect insertion prevention
  • Safety plug release
  • 0.5A Rated current
  • 50VAC/DC Rated voltage
  • 70mR Maximum contact resistance
  • 250VAC Maximum withstanding voltage
  • 5000 Mating/unmating cycles

消费电子产品, 音频, 通信与网络, 便携式器材

LX60-12S产品信息

  触点数  12触点
  极性  插座
  连接器类型  I/O
  接触终端类型  焊接
  产品范围  LX系列
  连接器安装  电路板安装
  触点镀层  镀金触芯
  触点材料  铜合金
关键词
电话:400-900-3095
QQ:800152669

LX60-12S产地与重量

原产地:
Japan

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85366990
重量(千克):
.001361
