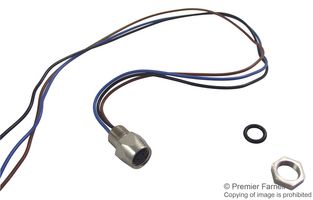

The ELKE 3308VFM805 is a 3-contact Appliance Socket with gold-plated contacts, stranded wire, screw locking and M8x0.5 mounting thread. The front panel mounting appliance socket with PVC cable, PA contact bearer and Cu Zn/Ni housing, NBR O-ring. Meets IEC 61076-2-101 and IEC 60947-5-2 standards. It features 94V-2 flame-rated contact bearer.
- Metallic housing
- 0.75mm2 Conductor size
- 60VAC/DC Rated voltage
- 3A Rated current
- 3 Pollution severity
