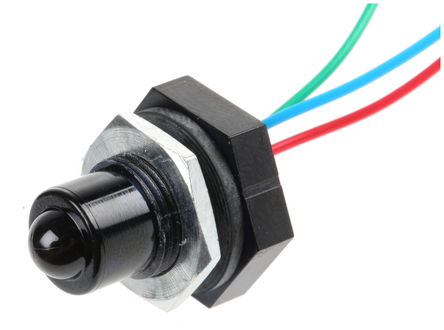

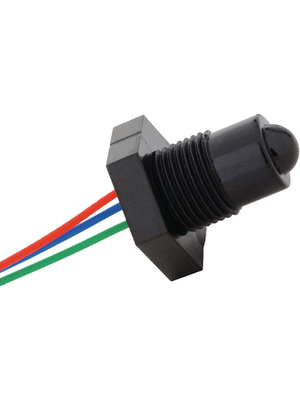

The LLE102101 is an enhanced Liquid Level Sensor incorporates a photo-transistor trigger which provides a digital output that denotes the presence or absence of liquid. This sensor incorporates reverse polarity, over voltage, short-circuit and transient protection.
- Solid state reliability, no moving parts
- Miniature size
- Very large choice of sensing media
- Fast response time
- Accurate and repeatable switching point
- Easy to install, saving assembly time
- High in air output type
- 250mm lead wires termination type
- Vamac rubber seal washer
- 5mA nominal supply current
- -40 to 125°C temperature range
