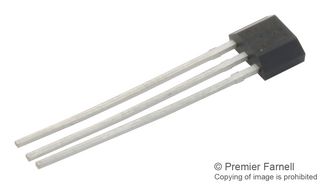

The SS41 is a bipolar Hall-effect Sensor for respond to alternating North and South poles. A built-in regulator provides stable operation over 4.5VDC to 24VDC supply voltage range and internal circuitry prevents sensor damage in case the supply voltage polarity is accidentally reversed. The SS41 Hall-effect sensors are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits.
- Small Size (0.16 x 0.12")
- Reverse Power Polarity Protection
- Current Sinking Output
- Sensitive Magnetic Characteristics
- Operating Speed from 0kHz to Over 100kHz
