P0K1.202.3FW.A.007 -

电阻温度传感器, Flat Wire, A级, -200 °C, 300 °C, 100 ohm, 300°C Series

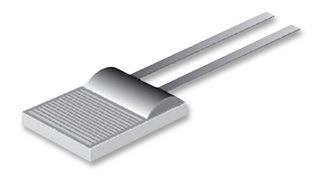

IST INNOVATIVE SENSOR TECHNOLOGY P0K1.202.3FW.A.007
声明:图片仅供参考,请以实物为准!
制造商产品编号:
P0K1.202.3FW.A.007
仓库库存编号:
2191840
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

P0K1.202.3FW.A.007产品概述

The 300?C series nickel Sensor with wires, for high temperatures. Temperature sensors are produced with different technologies to fit specific application requirements. To this end, IST has concentrated the development, manufacturing processes and materials to produce high-end thin-film temperature sensors. This know-how, partially derived from the semiconductor industry, allowing IST to manufacture sensors in very small dimensions. Thin-film temperature sensors exhibit a very short response time due to their low thermal mass. The technologies and processes of IST thin-film sensors combines the positive attributes of traditional wire wound platinum sensors -accuracy, long-term stability, repeatability and interchange ability within a wide temperature range. The advantages of thin-film mass-production creates an optimal price/performance ratio.
  • Fast response time
  • Excellent long-term stability
  • Vibration and temperature shock resistant
  • Low self-heating
  • Simple interchangeability
  • 100R at 0°C Nominal resistance
  • <0.04% Long-term stability at 1000hrs
  • 1mA (100R) Recommended applied current

工业

P0K1.202.3FW.A.007产品信息

  最低感应温度  -200°C
  最高感应温度  300°C
  电阻  100ohm
  产品范围  300°C Series
关键词

P0K1.202.3FW.A.007关联产品

  • 制造商产品编号
  • 仓库库存编号
  • 制造商 / 说明 / 规格书
  • 操作
电话:400-900-3095
QQ:800152669

P0K1.202.3FW.A.007产地与重量

原产地:
Switzerland

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
90251920
重量(千克):
.000227
