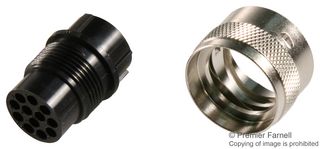

The 192922-1270 is a 12-way Trident Ringlock Circular Connector with nylon body and nickel-plated copper alloy coupling ring, accepts male contacts. It uses a metal bayonet coupling system for quick and reliable connections and thermoplastic bodies for low installed cost. The connector is available in several sizes ranging from 4 to 48 circuits for signals of up to 13A or coax. With the addition of a cable clamp, the connector can be water sealed to meet IP65.
- Rugged metal coupling
- Positive bayonet locking
- Shell to shell keying
- Integrally molded combined plastic body and insulator
- Accepts all trident signal and coaxial contacts
- 5000MR at 500VDC Minimum insulation resistance
- -55 to +105°C Operating temperature range
