CA3108E16S-8SBF80 -

制造商：

ITT CANNON ITT CANNON

制造商产品编号：

CA3108E16S-8SBF80

仓库库存编号：

2006233

技术数据表：

(EN)

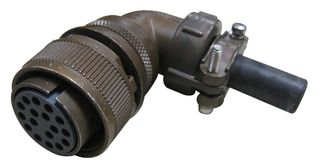

The CA3108E16S-8SBF80 from ITT Cannon is CA-B series, MIL-DTL-5015 series equivalent right angle plug with 5 contacts. CA-B series connectors are available in wide range of connector styles and sizes. The design meets MIL-DTL-5015 standards. It provides superior performance in extreme environmental conditions and offers exceptional sealing's against the ingress of fluids and will withstand the effects of high vibration. It provides high mechanical robustness with high density contact arrangements in a miniature circular shell and combines high coupling durability. It is the most versatile connector for an accurate connects and disconnect in environmentally challenging situations.

• Rapid mating and unmating by a positive quarter turn bayonet locking mechanism
• Quick-mating 3-point reverse bayonet coupling, shock and vibration proof
• 500 mating cycles, IP67/68/69k environmental resistance
• Operating temperature range of -55°C to +125°C
• Insulation resistance is > 1000Mohm
• Resilient polychloroprene (neoprene) insulator
• Moisture and corrosion resistant
• Operating voltage is 50VAC
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp socket contacts with silver plating
