49-59115 -

按钮开关, SPST-常开, 关-(开), 250 V, 50 V, 0.4 A

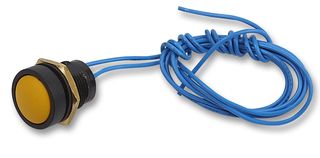

ITW SWITCHES 49-59115
声明:图片仅供参考,请以实物为准!
制造商产品编号:
49-59115
仓库库存编号:
734111
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

49-59115产品概述

The 49-59 series switches from ITW are momentary action pushbutton switches. These switches fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads (500mm length) along with a panel sealed IP67 version which is terminated by a series 16 microswitch. The SPDT-DB contacts provide reliable switching for DC loads. The series 49-59 is available with a choice of round, round with status illumination (flying leads only) or square bezels and with 6 button colour variants. The body and button are made from PBT, hard wearing thermoplastic polyester that is suitable for surface printing or engraving.
  • LED status illumination versions
  • Screw or snap-in panel mount
  • Square and round bezels
  • Logic level and 10A versions available
  • Fully sealed IP67 versions with 500mm insulated leads
  • Wide temperature range up to 105°C
  • Flame retardant UL rated material
  • Gold contacts on microswitch versions
  • Operating force of 3N

工业, 电源管理, 自动化与过程控制

49-59115产品信息

  开关操作  关-(开)
  接点配置  SPST-常开
  接触电压交流喃  250V
  接触电压直流喃  50V
  触点电流最大值  0.4A
  开关端子  -
  产品范围  49-59系列
关键词
电话:400-900-3095
QQ:800152669

49-59115产地与重量

原产地:
Great Britain

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85365011
重量(千克):
.017
