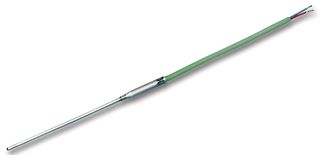

The 901221/32 series Mineral-Insulated Thermocouples with embedded wires are compressed fire-resistant magnesium oxide inside the flexible thin-walled sheath. The excellent heat transfer between the sheath and the thermocouple enables short response times (t0.5 from 0.15sec) and high measurement accuracy. The shock-proof construction ensures a long life. The minimum bending radius is 5x the external diameter.
For temperatures from -200 to +1200°C
Flexible sheath with shock-proof measuring insert
Protection tube diameter from 0.5mm
Fast response
Fitting length to suit application
Cable ends - bare wires, with ferrules, receptacles or multipole connectors connection
Stainless steel 1.4541, thermocouple type L & J inconel 2.4816, thermocouple type K protection tube
