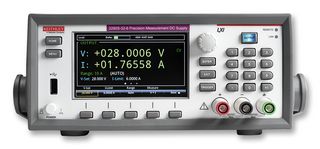

The Series 2280S Precision Measurement, Low Noise, Programmable DC Power Supplies are much more than just sources of clean power; they are also precision measurement instruments. They can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps.
Monitor load currents from 100nA to 6A with high accuracy
Measure voltage and current with 61/2-digit resolution
Capture dynamic load currents as short as 140μs
Output up to 192W of low noise, linear regulated power
Programmable rise and fall times eliminate voltage overshoot and undershoot transients
Built-in graphing simplifies analysing trends or displaying voltage or current waveforms
High resolution TFT display and soft-key/icon-based user interface simplify power supply operation
Programmable output sequences reduce test times
Sink up to 0.45A to discharge voltage quickly
Digital I/O for direct communication with other devices and instruments
GPIB, USB, and LAN interfaces
Built-in web page simplifies automated control/monitoring
Automate tests easily with KickStart start-up software
