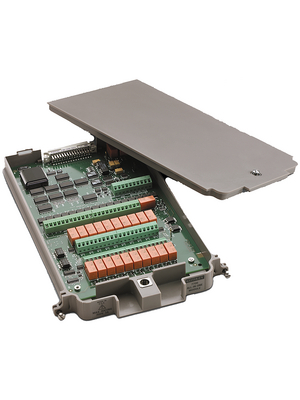

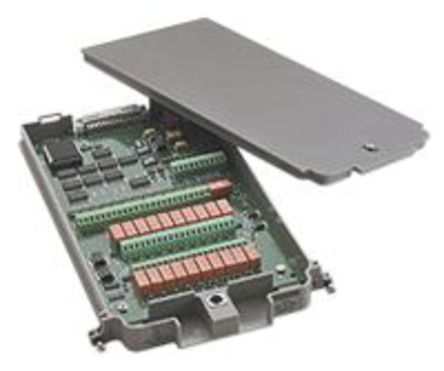

The 7706 is an all-in-one I/O Module offers 20 channels of 2-pole multiplexer switching with automatic CJC, as well as two analogue output channels, 16 digital outputs and one event counter/totalizer. The event counter/totalizer can be used to monitor and control system components such as fixtures, limit switches, pass/fail indicators, external voltage sources, loads, door closures, revolutions, while performing mixed signal measurements. The device is ideal for RTD, thermistor and thermocouple temperature applications.
- Configurable as two independent banks of multiplexers
- Relay closures stored in on-board memory
- Latching electromechanical relays
- 300V, 1A Capacity (60W, 125VA maximum)
- <1R at End of contact life resistance
- <±2μV Typical per contact, 3μV maximum contact potential
- <100pA Offset current
