N2790A -

High Voltage Differential Probe with 50:1 / 500:1 Attenuation and 100MHz Bandwidth

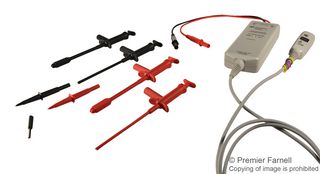

KEYSIGHT TECHNOLOGIES N2790A
声明:图片仅供参考,请以实物为准!
制造商产品编号:
N2790A
仓库库存编号:
1903979
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

N2790A产品概述

Use the N2790A 100-MHz high-voltage differential probe to make safe and accurate floating measurements with an oscilloscope. The N2790A probe allows conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to 1,400 V of differential voltage and 1,000 V of common mode voltage. Thanks to its high bandwidth and excellent input-impedance characteristics, the probe can accurately measure up to 3.5 nsec of fast transient edges in modern switching power supplies. The probe is compatible with Keysight's AutoProbe interface with 1 Mohm input where the probe's power is supplied by the Keysight oscilloscope's probe interface.
  • User-selectable attenuation settings of 50:1 or 500:1
  • Rated to measure differential voltage up to 1400 VDC + peak AC with high CMRR of >50 dB at 1 MHz
  • Overrange indicator alerts the user when the probe input exceeds the dynamic range of the probe
  • AutoProbe interface

传感与仪器, 计量, 测试与测量

N2790A产品信息

  示波器探头功能  高压差分探头
  带宽  100MHz
  输入电压最大值  1.5kV
  测试探头衰减  50:1, 500:1
  用于  InfiniiVision 3000 X, 4000 X, 5000, 6000, 7000, Infiniium 8000, 54830, 9000 Series Oscilloscopes
  产品范围  -
关键词

N2790A相关搜索

示波器探头功能 高压差分探头  KEYSIGHT TECHNOLOGIES 示波器探头功能 高压差分探头  示波器测试探头 (电压/频率) 示波器探头功能 高压差分探头  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 示波器探头功能 高压差分探头   带宽 100MHz  KEYSIGHT TECHNOLOGIES 带宽 100MHz  示波器测试探头 (电压/频率) 带宽 100MHz  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 带宽 100MHz   输入电压最大值 1.5kV  KEYSIGHT TECHNOLOGIES 输入电压最大值 1.5kV  示波器测试探头 (电压/频率) 输入电压最大值 1.5kV  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 输入电压最大值 1.5kV   测试探头衰减 50:1, 500:1  KEYSIGHT TECHNOLOGIES 测试探头衰减 50:1, 500:1  示波器测试探头 (电压/频率) 测试探头衰减 50:1, 500:1  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 测试探头衰减 50:1, 500:1   用于 InfiniiVision 3000 X, 4000 X, 5000, 6000, 7000, Infiniium 8000, 54830, 9000 Series Oscilloscopes  KEYSIGHT TECHNOLOGIES 用于 InfiniiVision 3000 X, 4000 X, 5000, 6000, 7000, Infiniium 8000, 54830, 9000 Series Oscilloscopes  示波器测试探头 (电压/频率) 用于 InfiniiVision 3000 X, 4000 X, 5000, 6000, 7000, Infiniium 8000, 54830, 9000 Series Oscilloscopes  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 用于 InfiniiVision 3000 X, 4000 X, 5000, 6000, 7000, Infiniium 8000, 54830, 9000 Series Oscilloscopes   产品范围 -  KEYSIGHT TECHNOLOGIES 产品范围 -  示波器测试探头 (电压/频率) 产品范围 -  KEYSIGHT TECHNOLOGIES 示波器测试探头 (电压/频率) 产品范围 -
电话:400-900-3095
QQ:800152669

N2790A产地与重量

原产地:
Philippines

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
90309085
重量(千克):
1.009242
