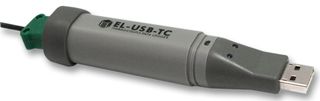

This data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple . A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, thermocouple calibration, logging rate, start-time, logging mode, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed downloadable software under Windows 98, 2000, XP, 7 & 8. Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which will last for approximately 6 months. The data logger is protectedagainst moisture.
- USB Interface for set-up and data download
- 2 User-Programmable alarm thresholds
- Bright red and green LED Indication
- Replaceable internal lithium battery
- Logging rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
- High and low alarms
- Start date and start Time
- Range of logging modes available
- Calibration facility
