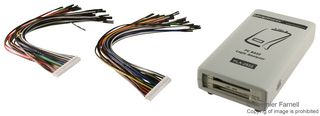

The PLA series provides complete date acquisition system, Logic Analyzer and Data Logger. This small instrument is making digital software and hardware designers the ability to quickly capture the complex signals for analysis and debugging. Moreover, the PLA is able to cooperate with your own design program for test automation system.
- Internal (asynchronous) and External (synchronous) capture
- The timing of each trigger point can be shown by the cursor mark
- Binary code and hexadecimal List mode (State) display
- Able to save measuring data and waveform results
- Provide I2C, SPI, UART and CAN signal decoding function on PC
- Provide various signal trigger and capture: 4 kinds of trigger modes including Pattern/Edge/AND/OR
- 256K Bytes ~ 2M Bytes long memory depth: each CH memory depth is up to 128Kbits ~ 512Kbits
- The adjustable sample rate size can be set by users, which avoids long capturing time
- "Trigger Counter" and "Pulse Width Trigger" function
- High-speed Zoom In/Zoom Out function
- Smart software provides text file for saving the Binary Code of waveform
- USB 2.0 interface for PC link function
- Powered by USB
