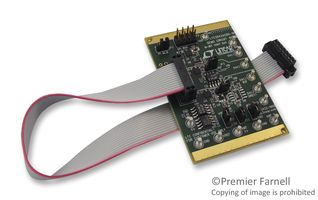

Demonstration circuit 1096B features the LTC?2642A-16, a 16-bit voltage output DAC. The LTC2642A-16 output is unbuffered, allowing it to swing all the way to the supply rails.
Designed to allow easy evaluation of the LTC2642A-16
Digital signals can be connected to the end application's processor/ controller
