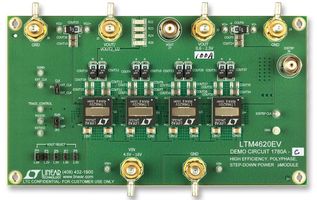

Demonstration circuit 1780A-C features poly phase design using the LTM?4620EV, the high efficiency, high density, dual 13A, switch mode step-down power module regulator. The LTM4620 on DC1780A-C always operates in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK_CONTROL pin.
- Complete standalone dual output power supply
- Dual 13A or single 26A output
- Wide input voltage range
- Differential remote sense amplifier
- Current mode control/fast transient response
- Adjustable switching frequency
- Over current foldback protection
- Frequency synchronization
- Internal temperature sensing diode output
- Output overvoltage protection
