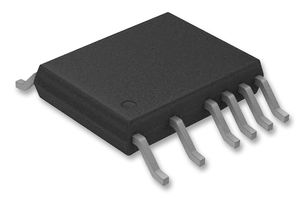

LT3748IMS#PBF -

制造商：

LINEAR TECHNOLOGY LINEAR TECHNOLOGY

制造商产品编号：

LT3748IMS#PBF

仓库库存编号：

1898624

技术数据表：

(EN)

The LT3748IMS#PBF is a 100V Isolated Flyback Controller specifically designed for the isolated flyback topology and capable of high power. It drives a low side external N-channel power MOSFET from an internally regulated 7V supply. No third winding or opto-isolator is required for regulation as the part senses the isolated output voltage directly from the primary-side flyback waveform. The LT3748 utilizes boundary mode to provide a small magnetic solution without compromising load regulation. Operating frequency is set by load current and transformer magnetizing inductance. The gate drive of the LT3748 combined with a suitable external MOSFET allow it to deliver load power up to several tens of watts from input voltages as high as 100V.

• 1.9A Average gate drive source and sink current
• Boundary mode operation
• No transformer third winding or opto-isolator required for regulation
• Primary-side winding feedback load regulation
• VOUT set with two external resistors
• INTVCC pin for control of gate driver voltage
• Programmable soft-start
• Programmable under-voltage lockout
