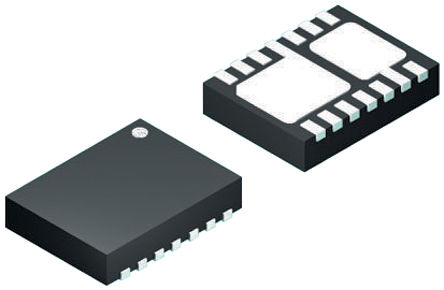

LTC2493IDE#PBF -

制造商：

LINEAR TECHNOLOGY LINEAR TECHNOLOGY

制造商产品编号：

LTC2493IDE#PBF

仓库库存编号：

2294651

技术数据表：

(EN)

The LTC2493IDE#PBF is a 4-channel 24-bit delta-sigma? Analog-to-digital Converter (ADC) with EasyDrive? technology and a 2-wire, I2C interface. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy. It includes a high accuracy temperature sensor and an integrated oscillator. This device can be configured to measure an external signal or its internal temperature sensor. Any combination of single-ended or differential inputs can be selected and the first conversion, after a new channel is selected is valid. Access to the multiplexer output enables optional external amplifiers to be shared between all analog inputs and auto-calibration continuously removes their associated offset and drift.

• EasyDrive? Technology enables rail-to-rail inputs with zero differential input current
• Directly digitizes high impedance sensors with full accuracy
• 2-wire I2C interface with 9 addresses plus one global address for synchronization
• Integrated high accuracy temperature sensor
• GND to VCC Input/reference common mode range
• No latency - digital filter settles in a single cycle, even after a new channel is selected
• Internal oscillator
