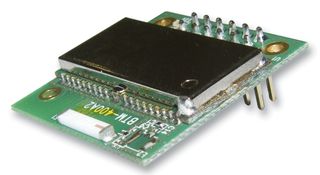

LM400 is a long range 12 pin plug and play Bluetooth module with on-board chip antenna for 3.0V to 3.6V voltage operation. This module is CSR BC04 Class 1 module with on-board chip antenna. This module comes with a 12 pin header for easy plug and play integration on customer platform. It is suitable for serial port applications over a range of 100m and comes with Bluetooth v2.0+EDR compliant SPP firmware. It can be configured using our set of AT Commands sent over UART. This module has been integrated with thermal printers.
Used in LM Technologies Ltd thermal printer
Bluetooth v2.0 + EDR compliant backward compatible with Bluetooth v1.2/1.1 specification
Full Bluetooth Data rate up to 3Mbps
Class 1 Radio with 100m range in open space
Single onboard antenna connector support (optional)
Onboard chip antenna
Easy Plug n Play integration
Excellent solution to integrate wireless connectivity to a product for long range connectivity
All the firmware and hardware design developed and owned by LM Technologies Ltd
