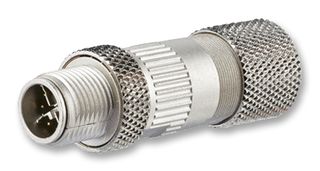

The MNF881A315-0001 is a 8-contact X-coded Circular Connector with gold-plated contacts, straight plug entry, tin-plated CuSn (tin bronze) shield and zinc die-cast housing. M12 CAT6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly. Suitable for Power over Ethernet (PoE, PoE plus and UPoE).
8-wire M12 Plug for 22AWG
Solid copper wire diameter from 0.4 to 0.64mm
Stranded copper wire diameter from 0.48 to 0.76mm
Easy to assemble, connection without special tools
