ARD00354 -

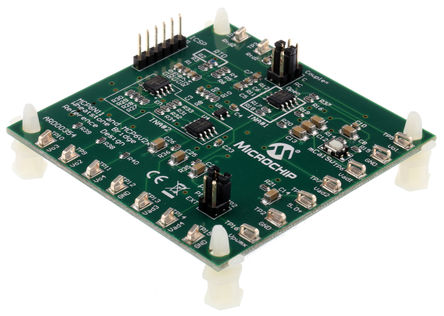

MCP6N11 Wheatstone Bridge Reference Design Board

MICROCHIP ARD00354
声明:图片仅供参考,请以实物为准!
制造商产品编号:
ARD00354
仓库库存编号:
2135314
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

ARD00354产品概述

The ARD00354 is an MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design board that demonstrates the performance of MCP6N11 instrumentation amplifier (INA) and a traditional three op amp INA using MCP6V26 and MCP6V27 auto zeroed op amps. The input signal comes from an RTD temperature sensor in a Wheatstone bridge. Real world interference is added to the bridge's output, to provide realistic performance comparisons. Data is gathered and displayed on a PC, for ease of use. The USB PIC microcontroller and included Graphical User Interface (GUI) show how to implement these functions. This board uses an RTD temperature sensor, in a Wheatstone bridge, to measure the board's temperature. The bridge's output is a small Differential mode (DM) signal with a large Common mode (CM) interference signal superimposed. The CM signal is a PWM waveform generated by the microcontroller, which simulates real world interference.
  • RTD temperature sensor
  • INA signal conditioning
  • PICmicro signal conditioning and communications
  • PC software (GUI): Thermal management utility

传感与仪器, 便携式器材, 医用

ARD00354产品信息

  硅芯制造商  Microchip
  硅芯号  PIC18F
  套件应用类型  放大器
  应用系统子类型  -
  套件包含  Board, USB Cable, User Guide
  产品范围  -
关键词
电话:400-900-3095
QQ:800152669

ARD00354产地与重量

原产地:
United States

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
84733080
重量(千克):
.2
