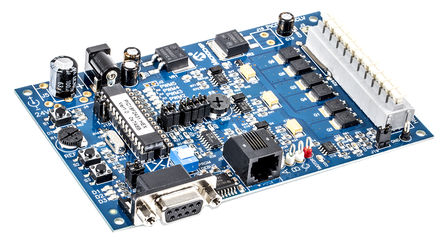

The DM183021是一个PICDEM MC LV 开发电路板提供a cost effective method of 评估和developing传感器ed or传感器less brushless DC motor 控制应用. The电路板 支持 28 pin, PIC18F微控制器s和dsPIC30F 数字信号控制器. The电路板 is capable of 控制ling motors rated up to 48V和2.2A. This 低成本电路板 has the facility to use either the PIC18F2331/2431 or the dsPIC30F2010/3010设备用于控制. Low引脚count motor 控制parts, 如 the PIC18F1230/1330, can also be configured with daughter电路板s. The PICDEM MC LV 开发电路板是一个compact电路板 containing a 3 phase voltage source inverter bridge和控制circuitry around the微控制器. The电路板 comes with a free, ready to use MC GUI. Using the MC-GUI, the user can easily set and/or change motor parameters. This greatly helps the user in developing Customised drive solutions.
- 运动控制图形用户接口
- 三相电压源逆变桥
- 运动传感器输入
- 过流保护, 可使用电位器为电平编程
- 温度传感器带I2C接口
- 电机电流和反电动势检测的测试点
- 速度控制电位器
- 三相, 24V无刷直流低电压电机(可选)
- 24V外部电源(可选)
- 九个LED, 三个用于状态指示, 六个用于PWM指示
