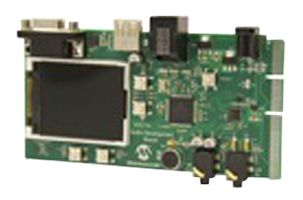

The DM330016是一个音频 开发电路板 用于dsPIC33E. The音频编解码器是一个Wolfson WM8960. The codec is of hi-fi quality with up to 24bit resolution. The sampling rates supported are between 8KHz to 48KHz和包括 an 片上flexible PLL. The codec has a built in headphone driver和a stereo Class D speaker driver. In addition, it has 低功率消耗和offers a small foot print. On 32bit微控制器, the codec data 接口is handled through the SPI模块 in framed SPI mode. On 16位微控制器, the codec data 接口is handled through the DCI模块. The 控制registers of the codec are configured over the I2C 接口. The codec外部clock is provided by a 12MHz 晶体振荡器.
- DsPIC33EP512MU810 60MIPS性能, 512KB闪存, 24KB辅助闪存和52KB RAM
- 24位 Wolfson编解码器
- USBA型接口
- 板载麦克风
- 耳机输出和线路输入
- 高品质2 英寸彩色LCD
- 预加载的演示代码
- IPod, iPhone工作台卡边连接器
车用, 音频, 消费电子产品, 便携式器材
