EVB-LAN7500-LC -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

EVB-LAN7500-LC

仓库库存编号：

2292563

技术数据表：

(EN)

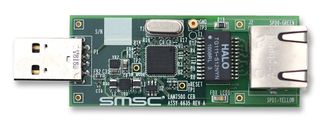

EVB-LAN7500-LC is an evaluation board that utilizes the LAN7500 to provide a fully functional, bus powered USB to Ethernet interface. The EVB-LAN7500-LC provides a fully integrated Ethernet port and USB port via the onboard RJ45 and USB Type A connectors. The onboard 4K EEPROM is used to load the EVB-LAN7500-LC's USB configuration parameters and MAC address. The LAN7500 is a high performance Hi-Speed USB 2.0 to 10/100/1000 Ethernet controller. The LAN7500 contains an integrated 10/100/1000 Ethernet MAC and PHY, Filtering Engine, USB PHY, Hi-Speed USB 2.0 device controller, TAP controller, EEPROM controller, and a FIFO controller with a total of 32KB of internal packet buffering. The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX, and is compliant with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards. ARP and NS offload is also supported.

• Single chip, hi-speed USB 2.0 to 10/100/1000 gigabit Ethernet controller
• Implements NetDetach technology for reduced system power consumption
• Supports EEPROM, less operation for reduced BOM costs
• Requires only a single 25MHz crystal
• Easy upgrade for USB based 10/100 Ethernet to 10/100/1000 Gigabit Ethernet
• Supports IEEE 802.3/802.3u/802.3ab standards
