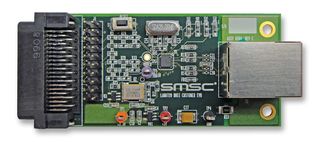

EVB8720 is a PHY evaluation board that interfaces a MAC controller to the LAN8720 Ethernet PHY via a standard 40 pin MII connector (adapted for use in RMII configuration). The LAN8720 is connected to an RJ45/Integrated Magnetics Ethernet Jack for 10/100 connectivity. The LAN8720A is a low power, small form factor, highly integrated analog interface IC for high performance embedded Ethernet applications. The LAN8720A requires only a single +3.3V supply and provides an integrated +1.2V supply to run the core digital logic. The LAN8720A are the industry's smallest footprint solutions with up to 40% lower power consumption than existing SMSC transceivers. LAN8720A connects to the MAC layer via an RMII interface.
Standard RJ45 connector with integrated magnetics and LED indicators for link and activity
On board LED indicators for speed 100 and full duplex
Supports RMII operation
Interfaces through 40 pin connector
Powered by 5.0V from the 40 pin connector
Includes probe points on all RMII data and control signals for troubleshooting
Includes 25MHz crystal for internal PHY reference
Sources RMII REF_CLK
Supports user configuration options including PHY address selection
