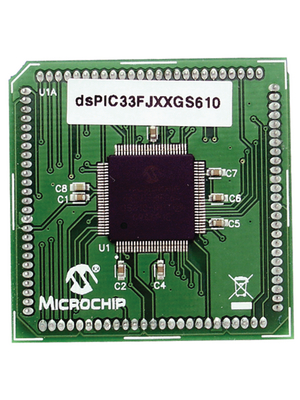

The MA330024 Plug In Module is small circuit board used with the Explorer 16 board (DM240001 or DM240002) and Buck/Boost Converter PICtail Plus Daughter Board (AC164133) to evaluate dsPIC33FJ64GS610 MCU. The dsPIC33FJ64GS610 is a high performance 16bit Digital Signal Controller in a 100 pin TQFP package. These plug into the main processor socket of the development boards so that different microcontrollers can be used for prototyping, demonstration or development quickly and easily.
Code efficient (C and Assembly) architecture
High Speed PWM
Two UART modules
Two 4 wire SPI modules (15 Mbps)
ECAN module (1 Mbaud) CAN 2.0B support
Two I2C modules (up to 1 Mbaud) with SMBus Support
PPS to allow function remap
4 channel DMA with user selectable priority arbitration
