MCP3204-BI/P -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

MCP3204-BI/P

仓库库存编号：

1852018

技术数据表：

(EN)

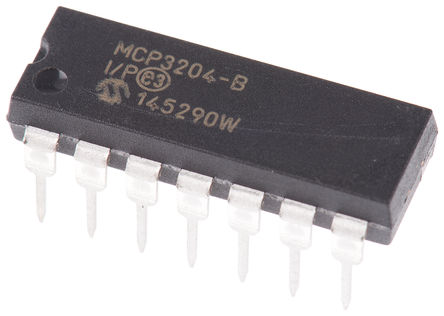

The MCP3204-BI/P is a 4-channel 12-bit Analog-to-digital Converter (ADC) with SPI serial interface and on-board sample and hold circuitry. The ADC is programmable to provide two pseudo-differential input pairs or four single-ended inputs. This is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential nonlinearity is specified at ±1LSB, while integral nonlinearity is offered in ±1 and ±2LSB version. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 100ksps. The ADC device operates over a broad voltage range. Low current design permits operation with typical standby and active currents of only 500 and 320μA respectively.

• Analog inputs programmable as single-ended or pseudo-differential pairs
• Low power CMOS technology
