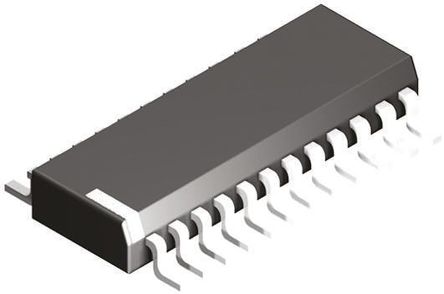

MTS62C19A-HS105 -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

MTS62C19A-HS105

仓库库存编号：

2009303

技术数据表：

(EN)

The MTS62C19A-HS105 is a dual CMOS full-bridge Motor Driver capable of driving both windings of a bipolar stepper motor or bidirectional control two DC motors. Each of the two independent H-bridge outputs is capable of sustaining 40V and delivering up to 750mA of continuous current. The output current level is controlled by an internal pulse-width modulation (PWM) circuit that is configured using two logic inputs, a current sense resistor and a selectable reference voltage. The H-bridge outputs have been optimized to provide a low output saturation voltage drop. Full, half and micro-stepping operations are possible with the PWM current control and logic inputs. The maximum output current is set by a sensing resistor and an user-selectable reference voltage.

• Pin-to-pin compatible with L6219 circuit
• Able to drive both windings of a bipolar stepper motor
• Output current up to 750mA (each bridge)
• Internal fixed T-off time PWM current control
• Built-in protection diodes
• Internal thermal shutdown
• Under-voltage lockout
• LS-TTL compatible logic inputs with pull-up resistors
• Low R-on output resistance
• Low quiescent current

• Bidirectional DC motor capability
