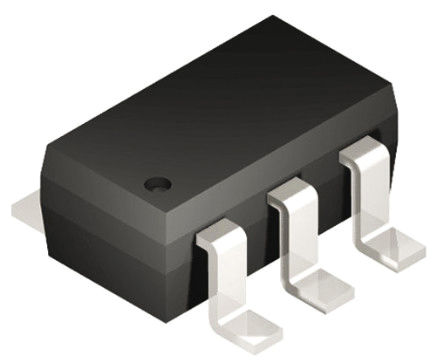

PIC10F322T-I/OT -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PIC10F322T-I/OT

仓库库存编号：

2079389

技术数据表：

(EN)

The PIC10F322T-I/OT is a 8-bit 6-pin Flash-based Microcontroller with high-performance RISC CPU. It is next generation of the PIC10F family that provides an increased feature set and increased performance over the existing PIC10F family. These new PIC10F32X variants are based on the standard mid-range architecture (vs. the baseline for the PIC10F2XX family) and provide interrupts, deeper hardware stack, PWM, emulated data EE, increased 16MHz internal oscillator, lower power and three 8-bit ADCs, as well as a few new integrated peripherals. These new integrated peripherals include a new configurable logic cell (CLC) allows the user to do simple Boolean functions such as AND/OR/XOR logic functions and D/JK/SR state functions, a Numerically controlled oscillator (NCO) module provides two functions a PWM with a fixed 50% duty cycle.

• Flash program memory with self read/write capability
• Mid-range core
• High endurance flash memory (HEF) - 128B of non-volatile data storage
• 35 instruction, 8 stack levels, hardware interrupts
• Low power internal 16MHz/31kHz oscillator
• 2 Stand-alone PWM's
• 3-channel 8b ADC with Vref
• Integrated temperature indicator
• Configurable logic cell (CLC)
• Complimentary Waveform Generator (CWG)

• Numerically controlled oscillator (NCO)
• Two 8-bit timer (TMR0/TMR2)
• Extended watchdog timer (EWDT)
• Brown-out reset (BOR)
• 25mA Source/sink current I/O
• In-Circuit Serial Programming? (ICSP?)
