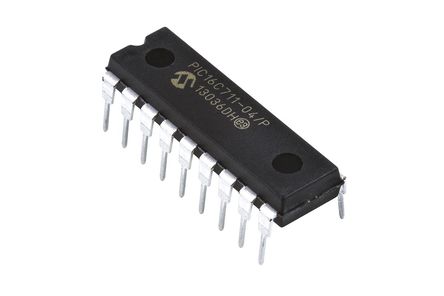

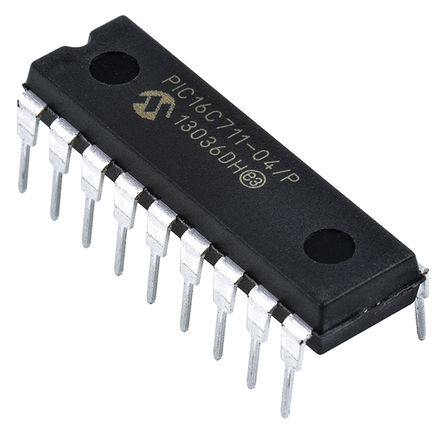

The PIC16C711-04/P is a 8-bit CMOS Microcontroller with A/D converter. It employs an advanced RISC architecture. The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allows a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches which require two cycles. A total of 35 instructions (reduced instruction set) additionally, a large register set gives some of the architectural innovations used to achieve a very high performance.
High-performance RISC CPU
Only 35 single word instructions to learn
All single-cycle instructions except for program branches which are two cycles
Up to 2k x 14 words of program memory
Up to 128 x 8 bytes of data memory (RAM)
Interrupt capability
Eight level deep hardware stack
Power-on reset (POR)
Power-up timer (PWRT)
Oscillator Start-up Timer (OST)
Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
Programmable code-protection
Power saving SLEEP mode
Selectable oscillator options
Low-power, high-speed CMOS EPROM technology
Fully static design
25/25mA High sink/source current
Program memory parity error checking circuitry with parity error reset
