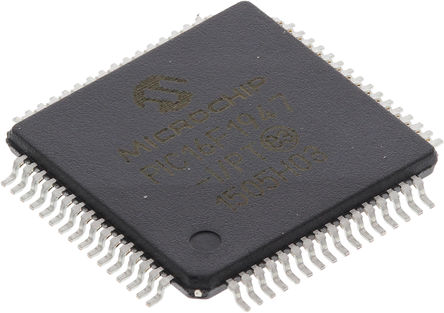

PIC16F1947-I/PT -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PIC16F1947-I/PT

仓库库存编号：

1778455

技术数据表：

(EN)

The PIC16F1947-I/PT is a 8-bit 64-pin Flash-based CMOS Microcontroller with LCD driver and nanoWatt XLP technology. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space. Accessing a location above these boundaries will cause a wrap-around within the implemented memory space. The reset vector is at 0000h and the interrupt vector is at 0004h.

• Flash program memory with self read/write capability
• 184 LCD segment drive support
• Internal 32MHz oscillator
• Integrated capacitive mTouch sensing module
• Integrated temperature indicator
• 2xMI2C, 2xSPI, 2xEUSART with auto baud
• 3 ECCP and 2 CCP (enhanced/capture compare PWM)
• Comparators with selectable voltage reference
• 17-channel 10-bit ADC with voltage reference
• 25mA Source/sink current I/O

• Four 8-bit timers (TMR0/TMR2/TMR4/TMR6)
• One 16-bit Timer (TMR1)
• Extended watchdog timer (EWDT)
• Enhanced power-on/off-reset
• Brown-out reset (BOR)
• In-Circuit Serial Programming? (ICSP?)
